SLIM DUCT SYSTEM

Air conditioning piping system which made with Professional Grade Polymers, the Slim Duct system delivers long-lasting durability and high impact resistance. Slim Duct system protects any line sets, wiring and drain hose from weathering, vandalism, as well as pet and pest damage. The beautiful ivory color and the design of the system cover and eliminates all unsightly line sets and wirings. By using the right mix of high-quality chemicals, Slim Duct system can be painted to match the interior or building style. Slim Duct system can be installed easily with only a few screws making it suitable for everyone. DIY, contractors, aircon installers, etc. With clever design, any damaged parts of the Slim Duct system can be removed and replaced individually and quickly.

SD

SF

SW

SC

SK

SJ

SEN

SIF

SA

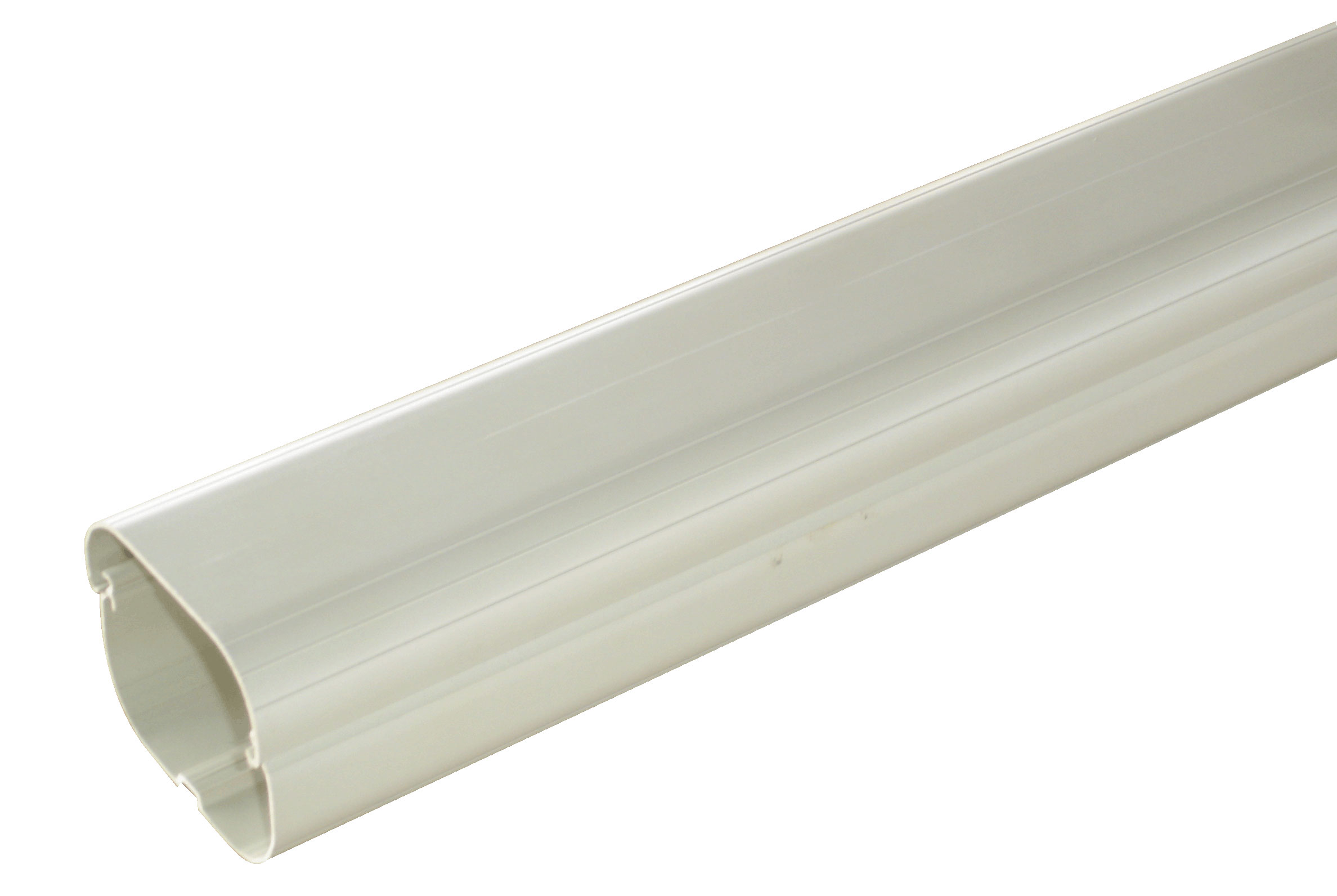

Slim Duct (SD)

Applications

Cosmetic piping cover.

DIMENSION (mm.)
Product No.	A	B	C	D	E	F	G	PCS/PKG
SD-88-DK	61	57	30.5	65	56	56	2000	5
SD-99-DK	75	60	37.5	78	73	73	2000	5

DIMENSION (mm.)
Product No.	A	B	C	D	E	F	G	PCS/PKG
SD-65-MM	61	57	30.5	65	56	56	2000	5
SD-75-MM	75	60	37.5	78	73	73	2000	5

DIMENSION (mm.)
Product No.	A	B	C	D	E	F	G	PCS/PKG
SD-75-HR	75	60	37.5	78	73	73	2000	5

Free Corner (SF)

Applications

· Flexible fitting.
· Flexible Elbow.

DIMENSION (mm.)
Product No.	A	B	C	D	PCS/PKG
SF-65-MM	74	62	58	495	20
SF-75-MM	72	74	62	495	20

DIMENSION (mm.)
Product No.	A	B	C	D	PCS/PKG
SF-75-HR	72	74	62	495	20

Wall Corner (SW)

Applications

· For wall inlets.
· Cosmetic piping inlet cover for use with everything from ceilings to walls.

DIMENSION (mm.)
Product No.	A	B	C	D	E	PCS/PKG
SW-88-DK	71	63	92	196	77	20
SW-99-DK	83	68	110	206	79	20

DIMENSION (mm.)
Product No.	A	B	C	D	E	PCS/PKG
SW-65-MM	71	63	92	196	77	20
SW-75-MM	83	68	110	206	79	20

DIMENSION (mm.)
Product No.	A	B	C	D	E	PCS/PKG
SW-65-HR	71	63	92	196	77	20

Slim Corner for Rising (SC)

Applications

For 90° vertical elbow.

DIMENSION (mm.)
Product No.	A	B	C	D	PCS/PKG
SC-88-DK	69	63	97	97	20
SC-99-DK	84	67	100	100	20

DIMENSION (mm.)
Product No.	A	B	C	D	PCS/PKG
SC-65-MM	69	63	97	97	20
SC-75-MM	84	67	100	100	20

DIMENSION (mm.)
Product No.	A	B	C	D	PCS/PKG
SC-75-HR	84	67	100	100	20

Slim Corner (SK)

Applications

· For elbow.

DIMENSION (mm.)
Product No.	A	B	C	D	PCS/PKG
SK-88-DK	70	62	100	100	20
SK-99-DK	86	69	128	128	20

DIMENSION (mm.)
Product No.	A	B	C	D	PCS/PKG
SK-65-MM	70	62	100	100	20
SK-75-MM	86	69	128	128	20

DIMENSION (mm.)
Product No.	A	B	C	D	PCS/PKG
SK-75-HR	86	69	128	128	20

Slim Joint (SJ)

Applications

For Straight fitting.

DIMENSION (mm.)
Product No.	A	B	C	PCS/PKG
SJ-88-DK	71	62	52	50
SJ-99-DK	83	68	51	50

DIMENSION (mm.)
Product No.	A	B	C	PCS/PKG
SJ-65-MM	71	62	52	50
SJ-75-MM	83	68	51	50

DIMENSION (mm.)
Product No.	A	B	C	PCS/PKG
SJ-75-MM	83	68	51	50

Slim End Cover (SEN)

Applications

For equipment connecting parts.

DIMENSION (mm.)
Product No.	A	B	C	D	E	PCS/PKG
SEN-88-DK	26	70	63	59	38	50

DIMENSION (mm.)
Product No.	A	B	C	D	E	PCS/PKG
SEN-65-MM	26	70	63	59	38	50
SEN-75-MM	46	96	69	59	38	50

Slim Cross Over (SIF)

Applications

For bridging wall panels (step height: 50 mm or less).

DIMENSION (mm.)
Product No.	A	B	C	D	PCS/PKG
SIF-75-MM	72	62	180	116	20

DIMENSION (mm.)
Product No.	A	B	C	D	PCS/PKG
SIF-75-HR	72	62	180	116	20

Slim Wall Cap (SA)

Applications

· Cosmetic piping inlet cover for use with everything from ceilings to walls.
· For ceiling cap.

DIMENSION (mm.)
Product No.	A	B	C	D	PCS/PKG
SA-75-MM	110	81	100	130	20

DIMENSION (mm.)
Product No.	A	B	C	D	PCS/PKG
SA-75-HR	110	81	100	130	20
